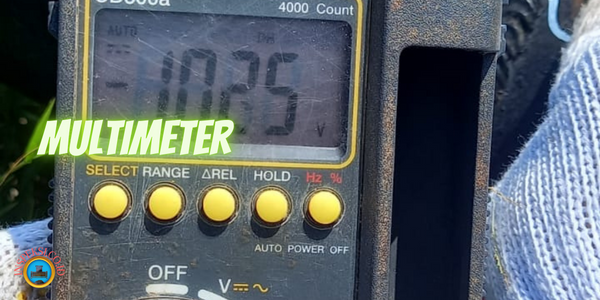

Multimeter Adalah: Jenis Fungsi Multimeter Beserta Cara Penggunaannya

Pendahuluan:

Dalam dunia teknik dan elektronik, multimeter adalah alat yang sangat penting dan hampir tidak tergantikan. Alat ini digunakan untuk mengukur berbagai parameter listrik seperti tegangan, arus, dan resistansi. Selain itu, multimeter juga dapat digunakan untuk menguji kontinuitas, mengukur kapasitansi, frekuensi, dan dalam beberapa kasus, suhu.

Menggunakan multimeter dapat membantu kita mendeteksi masalah dalam rangkaian listrik, menguji komponen, dan mengukur berbagai parameter listrik dengan akurat dan aman. Dengan pengetahuan dan pelatihan yang tepat, multimeter dapat menjadi alat yang sangat berguna dalam berbagai aplikasi teknik dan elektronik.

Dalam artikel ini, kita akan membahas berbagai aspek multimeter, termasuk pengertian multimeter, jenis-jenis multimeter, cara menggunakan multimeter, serta berbagai fungsi dari alat ini. Pengetahuan tentang multimeter ini sangat penting bagi siapa saja yang bekerja atau belajar di bidang teknik dan elektronik.

Pengertian Multimeter

Multimeter adalah alat yang sangat penting dalam bidang teknik dan elektronik, yang memiliki berbagai fungsi dalam pengukuran nilai-nilai listrik. Kata “multimeter” sendiri berasal dari dua kata, “multi” yang berarti banyak dan “meter” yang berarti pengukur. Jadi, multimeter bisa diartikan sebagai alat pengukur yang memiliki banyak fungsi.

Multimeter digunakan untuk mengukur berbagai parameter listrik seperti tegangan (voltase), arus (amperase), dan resistansi (ohm). Beberapa multimeter bahkan juga dapat digunakan untuk mengukur kapasitansi, frekuensi, suhu, dan parameter listrik lainnya.

Multimeter sendiri terbagi menjadi dua jenis utama, yaitu multimeter analog dan multimeter digital. Multimeter analog menggunakan jarum fisik untuk menunjukkan pembacaan pada skala, sedangkan multimeter digital menampilkan pembacaan pada layar LCD.

Untuk menggunakan multimeter, pengguna harus memilih fungsi yang tepat pada dial, lalu menghubungkan probe ke rangkaian yang akan diukur. Dengan pengetahuan dan pelatihan yang tepat, multimeter bisa menjadi alat yang sangat berguna untuk mendeteksi masalah dalam rangkaian listrik, menguji komponen, dan melakukan pekerjaan teknik lainnya.

Baca Juga  Apa Fungsi Resistor? Cara Kerja, Rumus, Jenis dan Cara Hitung

Dengan memahami pengertian dan fungsi multimeter, kita dapat memaksimalkan penggunaan alat ini dalam berbagai aplikasi teknik dan elektronik. Meski sederhana, multimeter adalah alat yang sangat berguna dan seringkali sangat penting dalam pekerjaan teknik dan perbaikan peralatan elektronik.

Jenis Multimeter

Multimeter memiliki dua jenis utama, yaitu multimeter analog dan multimeter digital. Kedua jenis ini memiliki kelebihan dan kekurangan tersendiri, serta kegunaan yang berbeda-beda sesuai dengan kebutuhan pengguna.

  1. Multimeter Analog

Multimeter analog, juga dikenal sebagai VOM (Volt-Ohm-Milliammeter), adalah alat yang menggunakan jarum fisik untuk menunjukkan hasil pengukuran pada skala analog. Jarum ini bergerak di sepanjang skala untuk menunjukkan pembacaan. Kelebihan multimeter analog adalah dapat menunjukkan perubahan nilai secara cepat dan kontinu, yang bisa sangat berguna dalam beberapa aplikasi. Namun, multimeter analog mungkin sulit dibaca dengan akurat, terutama untuk mereka yang tidak terbiasa menggunakan alat ini.

  1. Multimeter Digital

Sementara itu, multimeter digital atau DMM (Digital Multimeter), menampilkan hasil pengukuran dalam angka di layar LCD. Ini membuat pembacaan menjadi lebih mudah dan akurat, terlepas dari pengalaman pengguna. Multimeter digital juga biasanya memiliki lebih banyak fitur dan kemampuan pengukuran dibandingkan dengan multimeter analog. Namun, multimeter digital mungkin tidak secepat multimeter analog dalam menangkap perubahan cepat dalam nilai yang diukur.

Jenis-jenis multimeter lain yang mungkin Anda temui termasuk multimeter otomotif, yang dirancang khusus untuk diagnostik dan pemecahan masalah di kendaraan, dan multimeter khusus HVAC, yang memiliki fitur untuk mendukung pekerjaan pada sistem pemanas, ventilasi, dan pendingin udara.

Pemilihan antara multimeter analog atau digital, atau jenis khusus lainnya, biasanya tergantung pada apa yang perlu diukur, lingkungan tempat pengukuran dilakukan, dan preferensi pribadi pengguna. Dengan memilih multimeter yang tepat, pekerjaan pengukuran dan diagnostik bisa menjadi lebih mudah dan efisien.

Baca Juga  Alat Viskositas: Pengertian, Jenis, dan Fungsi

Cara Menggunakan Multimeter

Multimeter adalah alat yang sangat berguna untuk berbagai aplikasi teknik dan elektronik. Berikut adalah langkah-langkah dasar tentang cara menggunakan multimeter:

Multimeter
Pengukuran Menggunakan Multimeter
  1. Pilih Fungsi yang Tepat: Pertama, putar dial atau pilih fungsi pada multimeter sesuai dengan apa yang ingin Anda ukur. Misalnya, jika Anda ingin mengukur tegangan, pilih simbol V. Jika Anda ingin mengukur arus, pilih simbol A. Untuk resistansi, pilih simbol Ohm (Ω).
  2. Pilih Skala yang Tepat: Jika multimeter Anda bukan model otomatis, Anda juga perlu memilih skala yang tepat. Misalnya, jika Anda mengukur tegangan dan Anda berpikir nilai tersebut kurang dari 20V, atur skala Anda ke 20V.
  3. Hubungkan Probe: Hubungkan probe merah ke terminal yang ditandai dengan V (untuk tegangan), Ω (untuk resistansi), atau A (untuk arus), tergantung pada apa yang ingin Anda ukur. Probe hitam biasanya dihubungkan ke terminal COM.
  4. Ukur: Tempelkan ujung probe ke titik dalam rangkaian yang ingin Anda ukur. Probe merah untuk titik positif dan probe hitam untuk titik negatif atau ground. Jika Anda tidak yakin, mulailah dengan skala yang lebih besar dan turunkan secara bertahap.
  5. Baca Hasil: Setelah probe terhubung dan rangkaian menyala (jika diperlukan), baca hasil pengukuran pada layar atau skala multimeter Anda.

Ingatlah untuk selalu mengikuti prosedur keamanan saat menggunakan multimeter, terutama saat mengukur arus dan tegangan yang tinggi. Selalu matikan dan putuskan rangkaian sebelum mengukur resistansi, kapasitansi, atau kontinuitas. Selalu mulai dengan skala yang lebih tinggi dan turunkan secara bertahap jika Anda tidak yakin tentang nilai yang akan diukur. Akhirnya, pastikan multimeter Anda berada dalam kondisi baik dan selalu periksa sebelum digunakan.

Fungsi Multimeter

Multimeter adalah alat yang memiliki berbagai fungsi pengukuran yang bisa sangat berguna dalam bidang teknik dan elektronik. Berikut adalah beberapa fungsi utama dari multimeter:

  1. Mengukur Tegangan: Salah satu fungsi utama multimeter adalah untuk mengukur tegangan. Tegangan adalah beda potensial antara dua titik dalam suatu rangkaian. Multimeter bisa mengukur tegangan DC (Direct Current) maupun AC (Alternating Current).
  2. Mengukur Arus: Fungsi lain dari multimeter adalah mengukur arus listrik. Arus adalah jumlah muatan listrik yang melewati suatu titik dalam rangkaian dalam satu detik. Sama seperti pengukuran tegangan, multimeter dapat mengukur arus DC dan AC.
  3. Mengukur Resistansi: Multimeter juga bisa digunakan untuk mengukur resistansi dalam rangkaian. Resistansi adalah hambatan terhadap aliran arus listrik. Resistansi diukur dalam satuan ohm (Ω).
  4. Pengujian Kontinuitas: Multimeter juga dapat digunakan untuk pengujian kontinuitas. Tes kontinuitas digunakan untuk memeriksa apakah arus listrik dapat mengalir dengan baik dari satu titik ke titik lainnya dalam suatu rangkaian.
  5. Mengukur Kapasitansi: Beberapa multimeter canggih juga memiliki fungsi untuk mengukur kapasitansi, yaitu kemampuan komponen untuk menyimpan muatan listrik. Kapasitansi diukur dalam satuan farad (F).
  6. Mengukur Frekuensi: Multimeter yang memiliki fitur ini dapat mengukur frekuensi sinyal listrik. Frekuensi mengacu pada seberapa cepat sinyal berubah dalam satu detik dan diukur dalam Hertz (Hz).
  7. Mengukur Suhu: Beberapa multimeter memiliki fitur untuk mengukur suhu, biasanya dengan probe suhu khusus yang dihubungkan ke multimeter.
Baca Juga  Truck Mobile Crane

Keberagaman fungsi ini membuat multimeter menjadi alat yang sangat berguna dan hampir tidak tergantikan dalam berbagai aplikasi teknik dan elektronik. Dengan pengetahuan dan pelatihan yang tepat, multimeter dapat membantu kita mendeteksi masalah, menguji komponen, dan mengukur berbagai parameter listrik dengan akurat dan aman.
